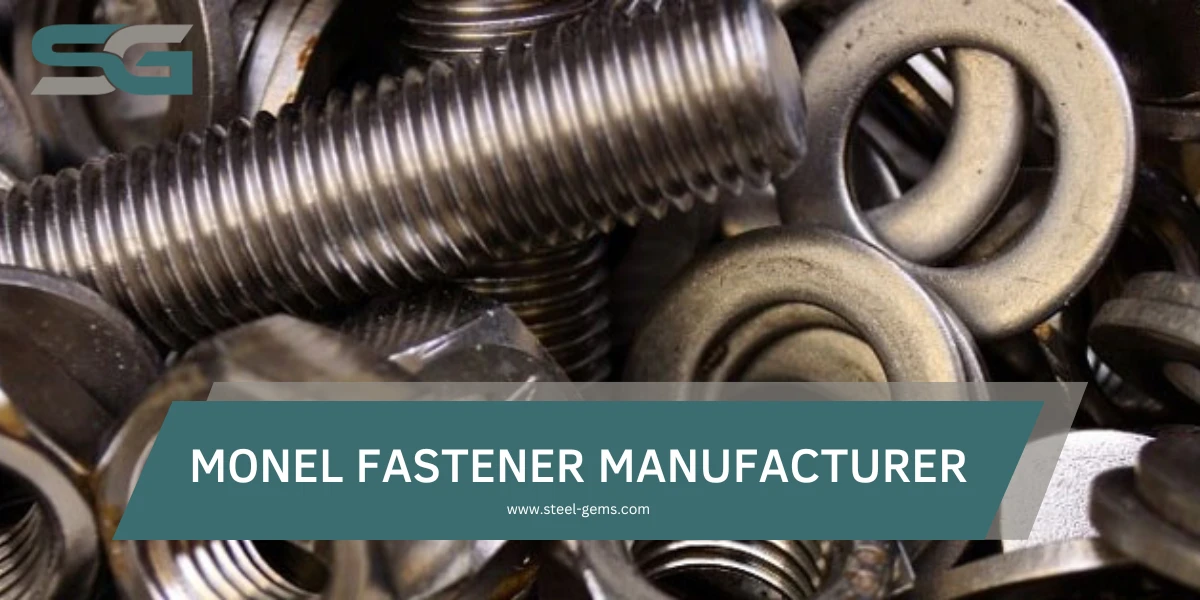

Top Monel Fastener Manufacturer, Supplier In India
Steel Gems is one of the prominent Monel Fastener Manufacturers in India. We manufacture, supply and export a wide range of Monel Fastener, Duplex Steel Fastener, Stainless Steel Fastener, Coated Fastener, Carbon Steel Fasteners and Mild Steel Fasteners in a variety of diameter, grade and thickness as per the client’s requirements.
We work diligently to provide the best Monel Fastener, Coated Fastener and Mild Steel Fastener with a premium quality in the entire industry. Our consistent focus on quality, pricing, and delivery has culminated in a large number of orders from India and other different countries.
Specification chart of Monel Washers
| Material | Monel Alloy Fasteners |
|---|---|
| ASTM / ANSI | ASTM B467 / ASME SB467, ASTM B865-04 / ASME SB865-04 |
| Grades | Alloy 400 Fasteners Alloy K500 Fasteners |
| Size | M02 to M160 |
| Common Used Types of Monel Washers | Monel Sealing Washer, Machine Washers, Star Washers, Lock Washer, Split Washer etc. |
| Threads: | BSW, METRIC, UNC, BSF, UNF or as required |
| M 2, M2.5, M 3, M4, M 6, M8, M10, M 12, M14, M20, M30 etc. | |
| In Form of: | Square, Hex, Round, Threading as per Gauge Etc. |
| Monel Bolting Test Certificate: | EN 10204 / 3.1 |
| Length | 3 mm to 200 mm |
| Top Manufacturers of Fasteners | GKW, Kundan, EBY Fastener, APL, Unbrako, Sundaram Precision, SPAX® Screws. |
Equivalent material of Monel threaded rod
| UNS | ASTM | EURO | ALLOY |
|---|---|---|---|
| N04400 | F467 | 2.4360 | 400 |
| N05500 | B865-04 | 2.4375 | K500 |
Monel Nuts Standard Dimensions
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
Dimensional Table of Monel Bolts
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
We are India's top Manufacturer of Bolts, Threaded rods, Nuts, Screws, Washers, and Stud Bolt. A broad range of high-quality Nut Bolt, Carriage Bolt, Stud Bolt, Threaded rods, and Screws are available from Steel Gems. We offer Monel Fastener with variety of Grades and Materails to our customers .
We keep a stock of Monel Fastener in various sizes and shapes to meet the needs of our customers. These Monel Fastener are utilized in construction, petrochemical, oil and gas, and chemical industries, among other industrial sectors. Additionally, Our Fastener can be customized to meet the needs of our clients.
Available Types Of Monel Fastener
Monel Bolts Torque Table
| Torque Specifications | |||||||
|---|---|---|---|---|---|---|---|
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
| #2 | 56 | 2.5 | 2.6 | ||||
| 64 | 3.0 | 3.2 | |||||
| #3 | 48 | 3.9 | 4.0 | ||||
| 56 | 4.4 | 4.6 | |||||
| #4 | 40 | 5.2 | 5.5 | ||||
| 48 | 6.6 | 6.9 | |||||
| #5 | 40 | 7.7 | 8.1 | ||||
| 44 | 9.4 | 9.8 | |||||
| #6 | 32 | 9.6 | 10.1 | ||||
| 40 | 12.1 | 12.7 | |||||
| #8 | 32 | 19.8 | 20.7 | ||||
| 36 | 22.0 | 23.0 | |||||
| #10 | 24 | 22.8 | 23.8 | ||||
| 32 | 31.7 | 33.1 | |||||
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
| 1/4 | 20 | 75.2 | 78.8 | ||||
| 28 | 94.0 | 99.0 | |||||
| 5/16 | 18 | 132 | 138 | ||||
| 24 | 142 | 147 | |||||
| 3/8 | 16 | 236 | 247 | ||||
| 24 | 259 | 271 | |||||
| 7/16 | 14 | 376 | 393 | ||||
| 20 | 400 | 418 | |||||
| 1/2 | 13 | 517 | 542 | ||||
| 20 | 541 | 565 | |||||
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
| 9/16 | 12 | 682 | 713 | ||||
| 18 | 752 | 787 | |||||
| 5/8 | 11 | 1110 | 1160 | ||||
| 18 | 1244 | 1301 | |||||
| 3/4 | 10 | 1530 | 1582 | ||||
| 16 | 1490 | 1558 | |||||
| 7/8 | 9 | 2328 | 2430 | ||||
| 14 | 2318 | 2420 | |||||
| 1 | 8 | 3440 | 3595 | ||||
| 14 | 3110 | 3250 | |||||
|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Foot-Pounds
|
|||||
| 1 1/8 | 7 | 413 | 432 | ||||
| 12 | 390 | 408 | |||||
| 1 1/4 | 7 | 523 | 546 | ||||
| 12 | 480 | 504 | |||||
| 1 1/2 | 6 | 888 | 930 | ||||
| 12 | 703 | 732 | |||||
Dimensions of Monel Nuts
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Monel Wood Screw Dimensional Chart
|
Nominal Size* |
Phillips Driver Size |
Head Diameter (A) | Head Height (H) |
Width of Slot (J) | Depth of Slot (T) | Dimension of Recess | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Ref | Max | Min | Max | Min | Dia. Max (M) | Dia. Min (M) | Depth Max (G) | Depth Min (G) | Width Min (N) | ||
| 2 | 1 | .172 | .147 | .051 | .031 | .023 | .023 | .015 | .102 | .089 | .063 | .047 | .017 |
| 3 | 1 | .199 | .141 | .059 | .035 | .027 | .027 | .017 | .107 | .094 | .068 | .052 | .018 |
| 5 | 2 | .252 | .220 | .075 | .043 | .035 | .034 | .022 | .154 | .141 | .086 | .063 | .027 |
| 6 | 2 | .279 | .244 | .083 | .048 | .039 | .038 | .024 | .174 | .161 | .106 | .083 | .029 |
| 7 | 2 | .305 | .268 | .091 | .048 | .039 | .041 | .027 | .189 | .176 | .121 | .098 | .030 |
| 9 | 2 | .358 | .316 | .108 | .054 | .045 | .049 | .032 | .214 | .201 | .146 | .123 | .033 |
| 12 | 3 | .438 | .389 | .132 | .067 | .056 | .060 | .039 | .283 | .270 | .171 | .148 | .036 |
| 16 | 3 | .544 | .485 | .164 | .075 | .064 | .075 | .049 | .303 | .290 | .191 | .168 | .039 |
Monel Bolts Dimensions Standard
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM | ACROASTM THE FLATS | ACROASTM CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Dimensions of Monel Heavy Hex Nuts
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Width Across Corners | Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 5/16 | .3125 | 9/16 | .562 | .546 | .650 | .622 | 19/64 | .314 | .280 |
| 3/8 | .3750 | 11/16 | .688 | .669 | .794 | .763 | 23/64 | .377 | .341 |
| 7/16 | .4375 | 3/4 | .750 | .728 | .866 | .830 | 27/64 | .441 | .403 |
| 1/2 | .5000 | 7/8 | .875 | .850 | 1.010 | .969 | 31/64 | .504 | .464 |
| 9/16 | .5625 | 15/16 | .938 | .909 | 1.083 | 1.037 | 35/64 | .568 | .526 |
| 5/8 | .6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | .631 | .587 |
| 1 | 1.0000 | 1-5/8 | 1.325 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | .956 |
| 1-1/8 | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/2 | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 2 | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 3 | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/2 | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
| 3-3/4 | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.670 | 3.616 |
| 4 | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
Monel Countersunk Screw Standard Dimensions
| Nominal size | Body Dia | Thread Pitch | Hex Socket Size | Max Cone Dia | Head Dia | Head Height | Soc. length | ||
|---|---|---|---|---|---|---|---|---|---|
| D(max) | D(min) | J | A1 | A_max | A_Min | H | K | ||
| M3 | 3.00 | 2.86 | 0.5 | 2,0 | 6,72 | 6,00 | 5,82 | 1,86 | 1,05 |
| M4 | 4.00 | 3.82 | 0.70 | 2,5 | 8,96 | 8,00 | 7,78 | 2,48 | 1,49 |
| M5 | 5.00 | 4.82 | 0.8 | 3,0 | 11,2 | 10,00 | 9,78 | 3,1 | 1,86 |
| M6 | 6.00 | 5.82 | 1.0 | 4,0 | 13,44 | 12,00 | 11,75 | 3,72 | 2,16 |
| M8 | 8.00 | 7.78 | 1.25 | 5,0 | 17,92 | 16,00 | 15,73 | 4,96 | 2,85 |
| M10 | 10.00 | 9.78 | 1.5 | 6,0 | 22,4 | 20,00 | 19,67 | 6,2 | 3,60 |
| M12 | 12.00 | 11.73 | 1.75 | 8,0 | 26,88 | 24,00 | 23,67 | 7,44 | 4,35 |
| M16 | 16.00 | 15.73 | 2.0 | 10,0 | 33,6 | 32,00 | 29,67 | 8,8 | 4,89 |
| M20 | 20.00 | 19.67 | 2.5 | 10,0 | 40,32 | 40,00 | 35,61 | 10,16 | 5,49 |
Dimensional Table of Monel Socket Head Cap Screw
| Nominal | Thread. | Hex Socket Size | Body diameter and Head height | Head Dia | Soc. length | ||
|---|---|---|---|---|---|---|---|
| Size | Pitch | Max | Min | Max | Min | ||
| J | D /H | A | K | ||||
| M3 | 0.5 | 2.50 | 3.00 | 2.86 | 5.50 | 5.20 | 1.3 |
| M4 | 0.70 | 3.00 | 4.00 | 3.82 | 7.00 | 6.64 | 2.00 |
| M5 | 0.8 | 4.00 | 5.00 | 4.82 | 8.50 | 8.14 | 2.70 |
| M6 | 1.0 | 5.00 | 6.00 | 5.82 | 10.00 | 9.64 | 3.30 |
| M8 | 1.25 | 6.00 | 8.00 | 7.78 | 13.00 | 12.57 | 4.3 |
| M10 | 1.5 | 8.00 | 10.00 | 9.78 | 16.00 | 15.57 | 5.50 |
| M12 | 1.75 | 10.00 | 12.00 | 11.73 | 18.00 | 17.57 | 6.60 |
| M16 | 2.0 | 14.00 | 16.00 | 15.73 | 24.00 | 23.48 | 8.80 |
| M20 | 2.5 | 17.00 | 20.00 | 19.67 | 30.00 | 29.48 | 10.70 |
| M24 | 3.0 | 19.00 | 24.00 | 23.67 | 36.00 | 35.38 | 12.90 |
Size Chart of Monel Nuts
| Nut Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Monel Bolts Cost Chart
| Price List of Ti Alloy Fasteners | Price Per Pcs. |
|---|---|
| Monel Alloy Screws | USD $3.40 |
| Monel Alloy Hex head bolt | USD $6.25 |
| Ti Alloy Washer | USD $1.40 |
| Ti Alloy Machine bolt | USD $5.50 |
| Monel Alloy Allen bolt | USD $5.00 |
| Ti Alloy Dowel Pins | USD $1.40 |
| Ti Alloy Socket Head Cap Screw | USD $3.40 |
| Monel Alloy Nuts | USD $1.40 |
Monel Fasteners Supplier in Indian Cities
| Steel Gems is Leading Fasteners Supplier in these cities | |||||
|---|---|---|---|---|---|
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
| Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
| Bhubaneswar | Vijaywada | Firozabad | Bokaro Steel City | Rajkot | Bharuch |
| Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
| Peenya | Pimpri-Chinchwad | Channapatna | Kharagpur | Nashik | Bareilly |
| Varanasi | Haldia | Rourkela | Bangalore | Moradabad | Indore |
| Visakhapatnam | Trivandrum | Pithampur | Dibrugarh | Angul | Gwalior |
| Coimbatore | Kannur | Nagpur | Vadodara | Rudrapur | Noida |
| Agra | Bhagalpur | Jamshedpur | Bhilai | Lucknow | kanpur |
| Thane | Bhopal | Navi Mumbai | Vasai | Bikaner | Maharashtra |
Monel Fastener Exporter
| Steel Gems is leading Monel Fastener Exporter in these Countries | |||
|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Bahrain |
| Qatar | UAE | Iran | Netherland |
| Nigeria | Mexico | Canada | Bangladesh |
| United States | South Africa | Malaysia | Brazil |
| Singapore | Sri Lanka | Australia | Turkey |
| Venezuela | United Kingdom | Germany | New Zealand |
