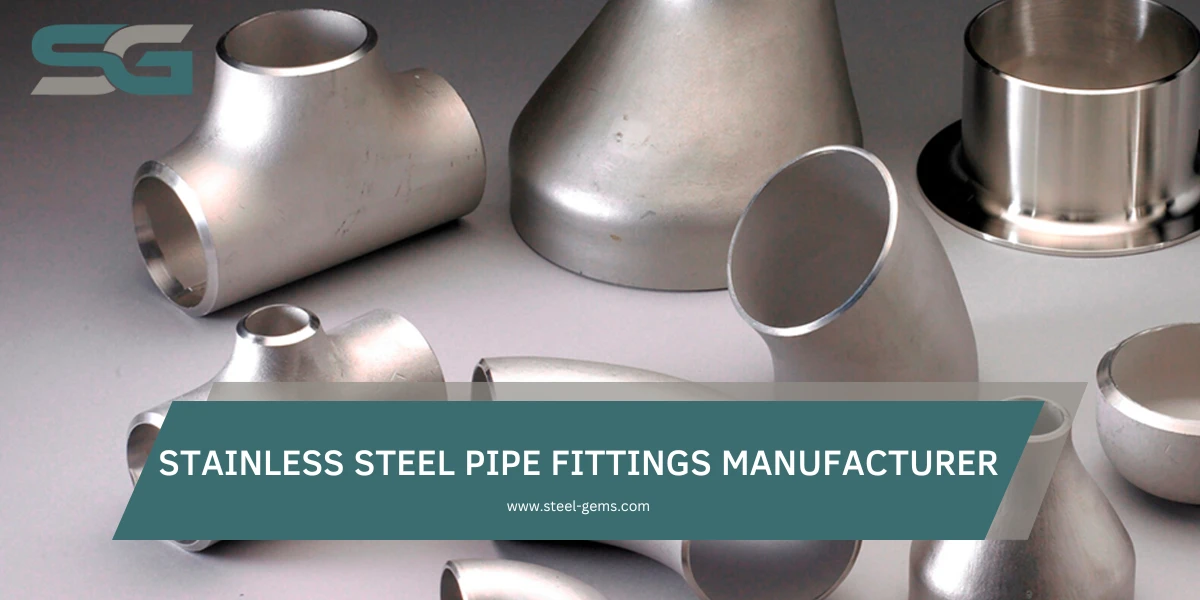

Top Stainless Steel Pipe Fitting Manufacturer, Supplier In India
Steel Gems is one of the prominent Stainless Steel Pipe Fittings Manufacturers in India. We manufacture, supply and export a wide range of Mild Steel Pipe Fittings, Carbon Steel Pipe Fittings and Alloy Steel Pipe Fittings in a variety of diameter, grade and thickness as per the client’s requirements.
We work diligently to provide the best Stainless Steel Pipe Fitting, Carbon Steel Pipe Fitting and Mild Steel Pipe Fitting with Premium quality in the entire industry. Our consistent focus on quality, pricing, and delivery has culminated in a large number of orders from India and other different countries.
Stainless Steel Pipe Fitting specifications
Specifications of Stainless Steel Pipe Fitting define in the table below.
| Stainless Steel Grades | 304 ,316, 321, 317L, 310 , 347 , 904L |
|---|---|
| Size Range | 1/8” NB – 48” NB |
| Schedules | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, XXS,100, 120, 140, 160 |
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Type | Welded, seamless, fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
Our Price List
Price List of Stainless Steel Pipe Fitting highlighted in the table below.
| Stainless Steel Weld Fittings Price Per Piece in India | SS Buttweld Fittings Price in INR | SS Buttweld Fittings Price in USD | SS Buttweld Fittings Price in UAE Dirham |
|---|---|---|---|
| 45 ELBOW 6 SCH. 40 SEAMLESS ELBOW (STAINLESS STEEL BUTT WELD FITTING) Per Kg | 954 | $13.04 | UAE Dirham 47.91 |
| ELBOW 90 DT -4.1.1.1 DT 7 25.40 MM 1000 X 1.65 MM 0.065 WELDED – S31603 Per Kg | 767 | $10.49 | UAE Dirham 38.52 |
| STAINLESS STEEL BUTT-WELD FITTINGS 12MM 45 DEGREE ELBOW Per Piece | 3,186 | $43.56 | UAE Dirham 159.99 |
Our Price List
Stainless Steel Buttweld Fitting ASTM A403 Pipe Fittings Price List.
| Stainless Steel Weld Fittings Price Per Piece in India | SS Buttweld Fittings Price in INR | SS Buttweld Fittings Price in USD | SS Buttweld Fittings Price in UAE Dirham |
|---|---|---|---|
| 45 ELBOW 6 SCH. 40 SEAMLESS ELBOW (STAINLESS STEEL BUTT WELD FITTING) Per Kg | 954 | $13.04 | UAE Dirham 47.91 |
| ELBOW 90 DT -4.1.1.1 DT 7 25.40 MM 1000 X 1.65 MM 0.065 WELDED – S31603 Per Kg | 767 | $10.49 | UAE Dirham 38.52 |
| STAINLESS STEEL BUTT-WELD FITTINGS 12MM 45 DEGREE ELBOW Per Piece | 3,186 | $43.56 | UAE Dirham 159.99 |
Stainless Steel Pipe Fitting are components that connect to Buttwelds. A type of screw or thread called an American standard Buttweld thread is frequently used on Stainless Steel Pipe Fitting to ensure a tight seal. A component that is attached to a buttweld is known as a pipe fitting. These come in a number of sizes to fit the Buttweld they will connect to and are used to combine, divert, or limit the flow of the water supply.
Stainless Steel Pipe Fitting dimensions are significant, and there are sizing standards to follow. While the majority have openings that are the same size on both ends, some fittings are made with different-sized openings and act as a bridge between sizes of Buttweld.
Available Types Of SS Buttweld Pipe Fittings
ASTM A182 Stainless Steel Pipe Fittings Chemical Composition
| ASTM A403 Grade | Maximum (C) | Maximum (Mn) | Maximum (P) | Maximum (S) | Maximum (Si) | Cr | Ni | Mo | Maximum (Nitrogen) | Cu/ Others |
|---|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel 304 Pipe Fittings | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
| Stainless Steel 304L Pipe Fittings | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 12.00 | – | 0.10 | – |
| Stainless Steel 316 Pipe Fittings | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| Stainless Steel 316L Pipe Fittings | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| Stainless Steel 347H Pipe Fittings | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 13.00 | – | – | Cb= 10x ( C Min ) or 1.00 Max |
| Stainless Steel 410 Pipe Fittings | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |
SS 304 Pipe Fittings Mechanical Composition
| Material Grade | Number (UNS) | Tensile Properties (ksi) (minimum) | Yield Properties (ksi) (minimum) | Elongation Property (minimum) | Hardnes Properties (Brinell) (maximum) | Hardness Properties (Rockwell B) (maximum) |
|---|---|---|---|---|---|---|
| Stainless Steel 304 Pipe Fittings | S30400 | 75 | 30 | 40% in 2″ | 183 | 88 |
| Stainless Steel 304l Pipe Fittings | S30403 | 70 | 30 | 40% in 2″ | 183 | 88 |
| Stainless Steel 316 Pipe Fittings | S31600 | 75 | 30 | 40% in 2″ | 217 | 95 |
| Stainless Steel 316L Pipe Fittings | S31603 | 70 | 25 | 35% in 2″ | 217 | 95 |
Equivalent Grades of 304, 310, and 316 Stainless Steel Pipe Fittings
| Standard | Wekstoff NR. | Uns |
|---|---|---|
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | – | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
Equivalent Grades of 304, 310, and 316 Stainless Steel Pipe Fittings
- 304 Stainless Steel Pipe Fittings used in Textile machinery
- Stainless Steel Pipe Fittings Uses in the Oil and gas industry
- Stainless Steel 316 Pipe Fittings Uses in Medical Gas Pipeline Systems
- Stainless Steel Pipe Fittings Uses in the Pharmaceutical Processing Industry
- Stainless Steel Pipe Fittings Uses in Fluid Piping.
- Stainless Steel Pipe Fittings Uses in Modern Architecture.
- ASTM A403 SS Pipe Fittings Uses in Water waste projects.
